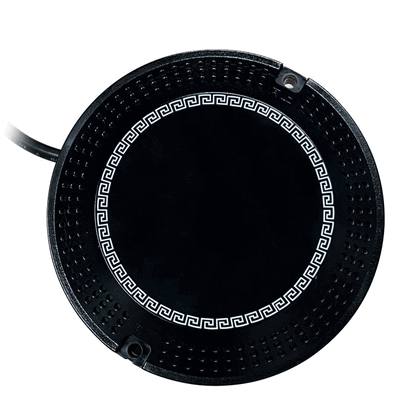

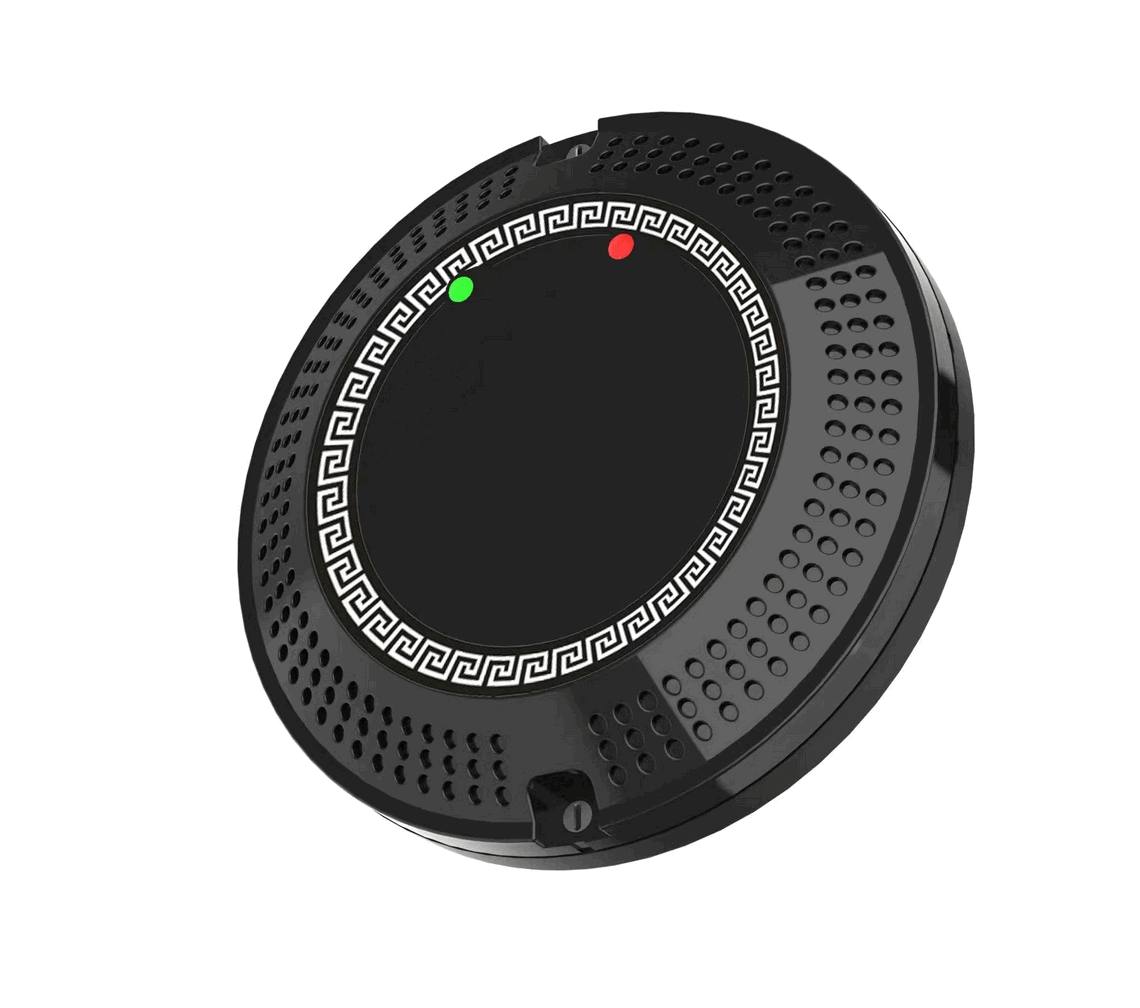

The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar specifically designed to prevent barrier gate accidents (anti-smash). Featuring an IP67 waterproof rating and a detection range of up to 6 meters, this is the premier solution for commercial parking and private residential estates worldwide, ensuring superior safety for vehicles and pedestrians alike.
| Material | ABS Plástico | Número de modelo | Ba-R02 |
| Marca | Baroxon | Aplicación | Brazo recto Barrera |
| Voltaje de entrada | DC12V 150mA | Frecuencia de operación | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Rango de detección | 1-6 meter. +-0.1 meter | Grado de protección | IP67 |
| Beam Horizontal | < 30° | Beam Vertical | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
| Unidad de venta | Artículo individual |
| Package Dimensions | 14X12X6 cm |
| Peso bruto | 0.500 kg |
(1.1) The anti-collision radar must be mounted on the barrier gate housing, perpendicular to the traffic lane. Recommended height: 0.6M from the ground. Distance from the boom arm: 15-25CM.
(1.2) Ensure the Barrera chassis is firmly anchored to prevent vibration during operation.
(1.3) Important: Keep the detection zone clear of obstacles such as tránsito cones, manhole covers, or signage (excluding the Brazo itself).
(1.4) Use the included adhesive template para precise drilling on the cabinet body.
Step 1: Detection Range Setting
Press and hold the button. Green light ON, red light OFF. Each flash of the red light adds 0.5m (1-6m cycle). Example: For a 4m boom, wait for 5 flashes (2.5m + 1m initial = 3.5m total).
Step 2: Environmental Learning
Press and release the button quickly. Both lights will flash. Wait 20 seconds for background scanning. Ensure no persons or vehicles are in the range during this time. Once completed, the red light will remain ON.
1. Why is 24GHz FMCW technology superior for automated parking applications?
FMCW radar offers exceptional accuracy and environmental stability compared to basic infrared sensors. It performs reliably under high-humidity, heavy rain, and extreme weather conditions worldwide.
2. Is the Ba-R02 compatible with LPR (License Plate Recognition) systems?
Yes, this radar integrates seamlessly with LPR cameras to provide a robust safety buffer, ensuring the boom arm never strikes a vehicle during scanning processes.
3. Is it complicated to adjust the detection range?
Not at all. Configuration is straightforward. Just follow our simple button-holding procedure to adjust the distance according to your specific boom arm length without needing external software.
