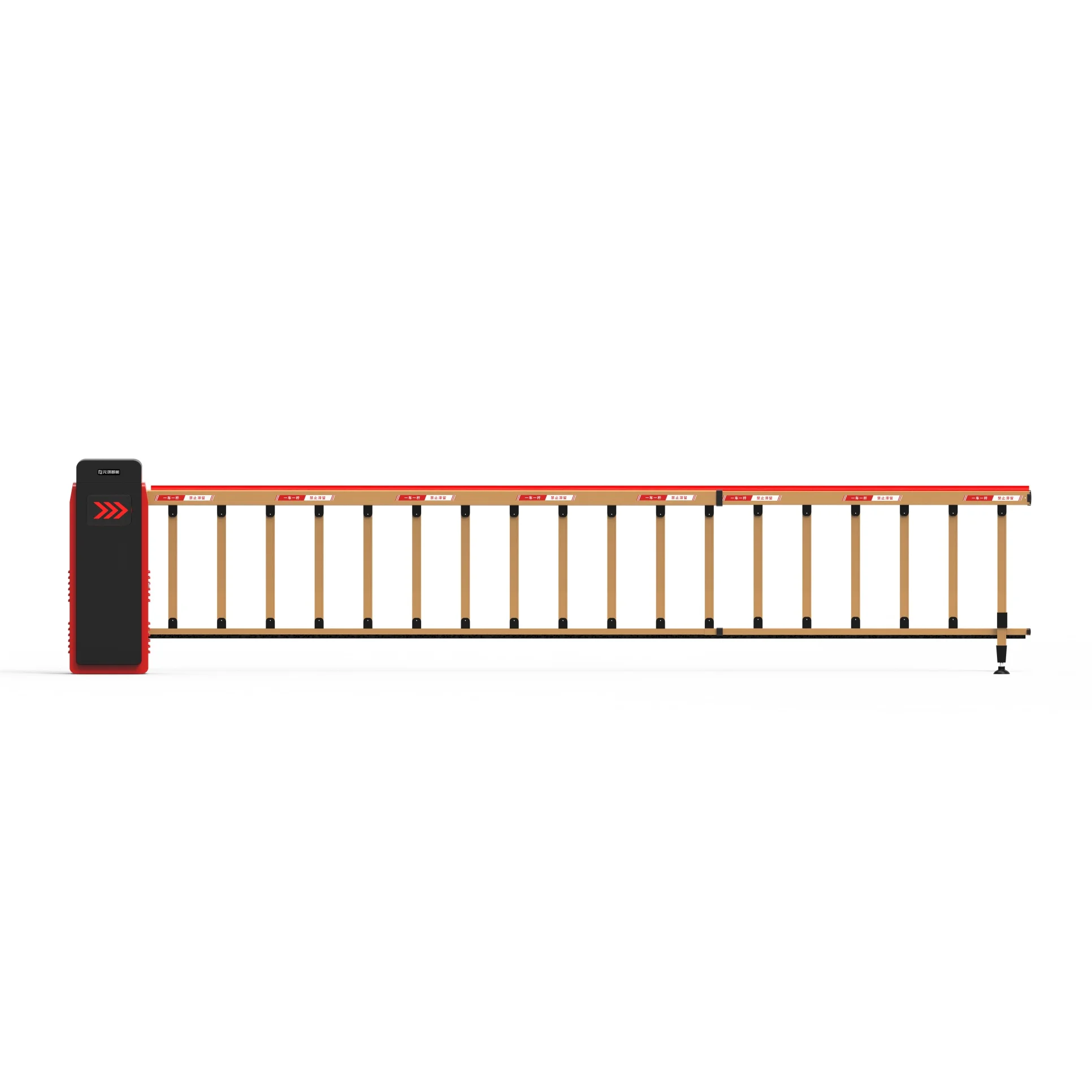

Conclusion: Smart Parking Management & Mini Boom Barrier Gate is the right automatic boom barrier for car park projects in Argentina: fast, touchless lane control that cuts queuing and manual staffing. It pairs a DC 24V Brushless / AC 220V / Servo Motor with Straight / Folding (90°/180°) / Fence (Two/Three-rail) arms from 1m - 6m (Customizable) and 0.6s / 0.9s / 1.5s - 6s (Adjustable) opening, rated 5 million cycles at 100% / Continuous / 5000 cycles per day. IP65 protection and Peak: 140W / Standby: suit continuous outdoor duty. Integration covers Card, Code, Key, Smartphone, Other, LPR/ANPR cameras, RFID and an open API with existing parking software. Baroxon builds it in Shandong (China) under ISO 9001 with CE marking, ships factory-direct, and backs it with under 30 minutes mean time to repair plus support for Argentina and Latin America.
Smart Parking Management & Mini Boom Barrier Gate for Compact Facilities. Test condition: the unit fitted with a straight arm of 1m - 6m (Customizable), no wind load, rated supply voltage, 25 °C ambient, 100 consecutive open/close cycles. Measured value: Opening time 0.6s / 0.9s / 1.5s - 6s (Adjustable); duty rating 100% / Continuous / 5000 cycles per day. Comparison baseline: An AC electromechanical barrier of the same arm length typically needs 3 s to 6 s and is limited to a 40% duty cycle.
Smart Parking Management & Mini Boom Barrier Gate for Compact Facilities. Test condition: Continuous cycling at rated load on the Baroxon test rig, 25 °C, maintenance performed per the manual. Measured value: MCBF 5 million cycles; mean time to repair under 30 minutes. Comparison baseline: Brushed-motor barriers of the same class are commonly specified at around 1 million cycles.
Smart Parking Management & Mini Boom Barrier Gate for Compact Facilities. Test condition: Idle state, arm parked, controller networked, measured over 24 h at 25 °C. Measured value: Power draw of Peak: 140W / Standby:. Comparison baseline: Conventional AC barrier controllers draw roughly 15 W to 25 W in standby.
Smart Parking Management & Mini Boom Barrier Gate for Compact Facilities. Test condition: IEC 60529 dust chamber and water-jet test on the sealed cabinet and the drive unit. Measured value: Protection class IP65. Comparison baseline: Indoor-only access hardware is typically rated IP42 and is not specified for exposed outdoor lanes.
| Type | Card, Code, Key, Smartphone, Other | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, One-Way Audio, Time & Attendance, Other |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
User-friendly interface featuring an integrated motherboard for enterprise-grade security and seamless operational control.
Modular architectural design ensures efficient installation and maintenance of your automatic boom barrier systems.
Engineered with a high-performance DC brushless motor and variable frequency conversion technology for fluid, low-noise operation in any smart vehicle access control lane.
Enhanced safety protection suite includes advanced anti-collision sensing, auto-rebound mechanics, and emergency manual lifting capabilities.
Ideal for diverse applications including contactless RFID access, pedestrian control gates, supermarket entry systems, and high-traffic toll lane management.

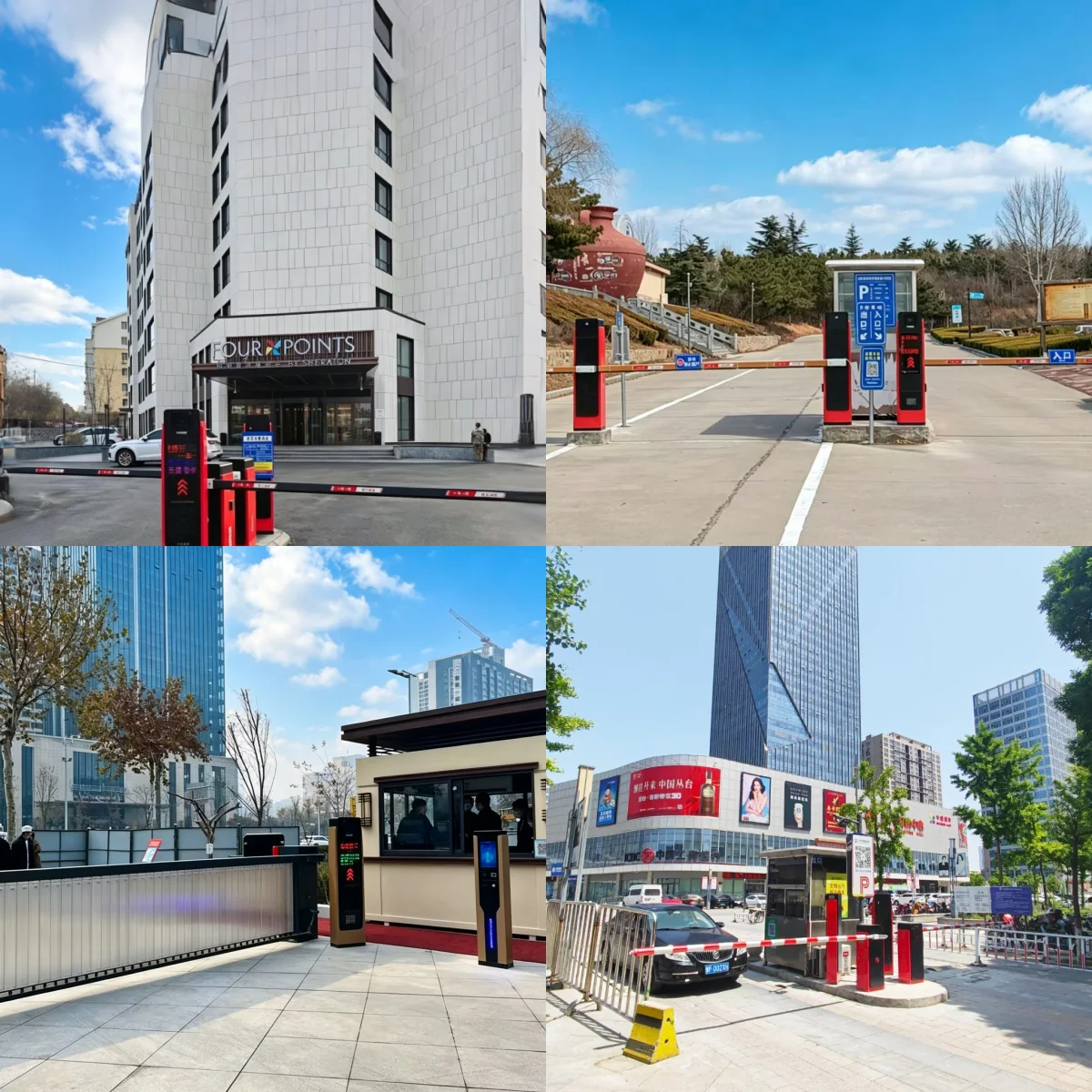

Usage scenarios include: Commercial Shopping Malls, Office Buildings, Hotels & Resorts, Exhibition Centers, Residential Apartment Complexes, Private Villas, Condominiums, Industrial Parks, Logistics Warehouses, Port Terminals, Construction Sites, Public Infrastructure, Airports, Railway Stations, Hospitals, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, Baroxon provides comprehensive engineering and manufacturing for vehicle access, commercial security, and intelligent parking deployments.
Q: What are the opening/closing speeds?
A: Standard speeds range from 0.8s to 6s, tailored for high-traffic toll plazas and commercial site management.
Q: Can the gate work with LPR or RFID systems?
A: Yes, it is fully compatible with LPR (License Plate Recognition), RFID proximity cards, and UHF long-range readers.
Q: Is it suitable for outdoor environments?
A: Absolutely, our units feature IP54-IP66 ratings with robust, UV-resistant powder coatings for long-term endurance.
Q: What safety features are provided?
A: Systems include anti-crash sensing, auto-reverse logic, loop detector integration, and a manual clutch for power outages.
Q: What is the expected lifespan?
A: Our DC brushless components are engineered for over 5 million cycles, ensuring low-maintenance, reliable service.
Contact Baroxon today for wholesale quotes and project tenders:
E-mail: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
