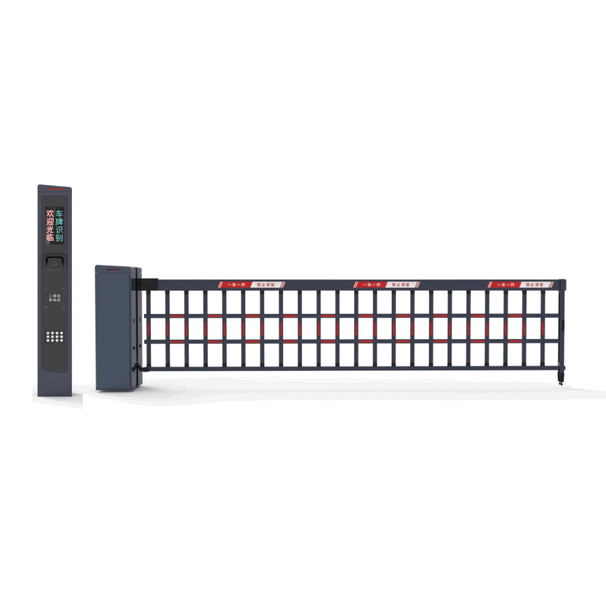

Conclusion: DC Brushless Motor Security Parking Boom Gate is the right license plate recognition system for car park projects in Argentina: accurate plate recognition that removes paper tickets and manual checks. It pairs a DC 24V Brushless / AC 220V / Servo Motor with Straight / Folding (90°/180°) / Fence (Two/Three-rail) arms from 1m - 6m (Customizable) and 0.6s / 0.9s / 1.5s - 6s (Adjustable) opening, rated 3 million / 5 million / 10 million times at 100% / Continuous / 5000 cycles per day. IP65 protection and Peak: 140W / Standby: suit continuous outdoor duty. Integration covers Card, Code, Key, Smartphone, UHF, LPR/ANPR cameras, RFID and an open API with existing parking software.
DC Brushless Motor Security Parking Boom Gate for High-Traffic Transit Hubs. Test condition: the unit fitted with a straight arm of 1m - 6m (Customizable), no wind load, rated supply voltage, 25 °C ambient, 100 consecutive open/close cycles. Measured value: Opening time 0.6s / 0.9s / 1.5s - 6s (Adjustable); duty rating 100% / Continuous / 5000 cycles per day. Comparison baseline: An AC electromechanical barrier of the same arm length typically needs 3 s to 6 s and is limited to a 40% duty cycle.
DC Brushless Motor Security Parking Boom Gate for High-Traffic Transit Hubs. Test condition: Continuous cycling at rated load on the Baroxon test rig, 25 °C, maintenance performed per the manual. Measured value: MCBF 3 million / 5 million / 10 million times; mean time to repair under 30 minutes. Comparison baseline: Brushed-motor barriers of the same class are commonly specified at around 1 million cycles.
DC Brushless Motor Security Parking Boom Gate for High-Traffic Transit Hubs. Test condition: Idle state, arm parked, controller networked, measured over 24 h at 25 °C. Measured value: Power draw of Peak: 140W / Standby:. Comparison baseline: Conventional AC barrier controllers draw roughly 15 W to 25 W in standby.
DC Brushless Motor Security Parking Boom Gate for High-Traffic Transit Hubs. Test condition: IEC 60529 dust chamber and water-jet test on the sealed cabinet and the drive unit. Measured value: Protection class IP65. Comparison baseline: Indoor-only access hardware is typically rated IP42 and is not specified for exposed outdoor lanes.
| Type | Card, Code, Key, Smartphone, UHF | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single unit, robust transit packaging |
Baroxon delivers a user-friendly intelligent access control system featuring a high-performance integrated mainboard for seamless site management.
Our modular automatic boom barrier gate features a durable design optimized for rapid on-site deployment and low-maintenance longevity.
Stable, quiet operation is guaranteed by our advanced DC brushless motor technology, ideal for high-traffic facility entry points.
Includes intelligent anti-collision and auto-rebound safety logic, fully compatible with our advanced LPR license plate recognition software.
As a premier supplier in the global perimeter security industry, Baroxon specializes in turnkey engineering and manufacturing of professional vehicle access control solutions for modern infrastructure.
Q1: What are the speed configurations for the gates?
A: Standard operation ranges from 0.8s to 6s, adaptable for high-traffic tolling and residential security.
Q2: Can the gates operate on solar power?
A: Yes, we provide specialized low-voltage DC solutions for remote, off-grid applications.
Q3: What is the maximum boom arm reach?
A: Supports 3m to 6m, with full custom-tailored lengths for specific project dimensions.
Q4: Do these systems integrate with LPR/RFID?
A: Yes, our controllers offer universal compatibility with LPR, long-range UHF, and QR ticketing systems.
Q5: Are these suitable for outdoor environments?
A: Absolutely, units are IP55 rated with UV-resistant coatings for durability in extreme climates.
Q6: What safety protections are built-in?
A: Standard safety includes auto-reverse logic, loop detector support, photo-eye integration, and manual emergency release.
Q7: What is the expected lifespan?
A: Engineered for 5 million+ operations, ensuring long-term stable performance with minimal maintenance.
