Conclusion: Servo Algorithm Control Parking Barrier Gate with is the right automatic boom barrier for car park projects in Argentina: fast, touchless lane control that cuts queuing and manual staffing. It pairs a DC 24V Brushless / AC 220V / Servo Motor with straight, folding or fence arms from 1 m to 6 m and 0.6 s to 6 s (adjustable) opening, rated 3M / 5M / 10M cycles at 100% / Continuous / 5000 cycles per day. IP65 protection and Peak: 140W / Standby: suit continuous outdoor duty. Integration covers Card, Code, Key, Smartphone, Other, LPR/ANPR cameras, RFID and an open API with existing parking software. Baroxon builds it in Shandong (China) under ISO 9001 with CE marking, ships factory-direct, and backs it with under 30 minutes mean time to repair plus support for Argentina and Latin America.

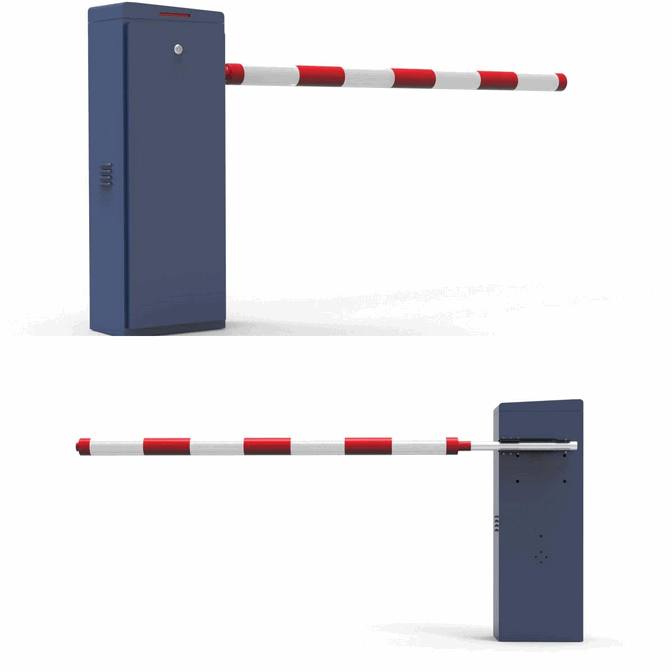

Servo Algorithm Control Parking Barrier Gate with Interactive LCD User Terminal. Test condition: the unit fitted with a straight arm of 1 m to 6 m, no wind load, rated supply voltage, 25 °C ambient, 100 consecutive open/close cycles. Measured value: Opening time 0.6 s to 6 s (adjustable); duty rating 100% / Continuous / 5000 cycles per day. Comparison baseline: An AC electromechanical barrier of the same arm length typically needs 3 s to 6 s and is limited to a 40% duty cycle.
Servo Algorithm Control Parking Barrier Gate with Interactive LCD User Terminal. Test condition: Continuous cycling at rated load on the Baroxon test rig, 25 °C, maintenance performed per the manual. Measured value: MCBF 3M / 5M / 10M cycles; mean time to repair under 30 minutes. Comparison baseline: Brushed-motor barriers of the same class are commonly specified at around 1 million cycles.
Servo Algorithm Control Parking Barrier Gate with Interactive LCD User Terminal. Test condition: Idle state, arm parked, controller networked, measured over 24 h at 25 °C. Measured value: Power draw of Peak: 140W / Standby:. Comparison baseline: Conventional AC barrier controllers draw roughly 15 W to 25 W in standby.
Servo Algorithm Control Parking Barrier Gate with Interactive LCD User Terminal. Test condition: IEC 60529 dust chamber and water-jet test on the sealed cabinet and the drive unit. Measured value: Protection class IP65. Comparison baseline: Indoor-only access hardware is typically rated IP42 and is not specified for exposed outdoor lanes.
| Type | Card, Code, Key, Smartphone, Other | Special Features | Anti-Theft, Siren, Motion Detection, Night Vision, Audio |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm | Straight / Folding / Fence (Customizable) | Arm Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3M / 5M / 10M cycles |
| Housing Thickness | 2.0mm Cold-rolled Steel | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single Industrial-Grade Unit |
Baroxon provides a high-performance automated gate solution with an intuitive interface and advanced motherboard integration for seamless facility management.
Our modular automatic boom barrier gate design ensures rapid, site-specific installation and minimal long-term maintenance costs.
Engineered for stability, the DC brushless motor and frequency conversion technology deliver smooth, silent, and reliable performance under intensive traffic conditions.
Safety is the core of our intelligent vehicle access barrier, featuring anti-collision detection, auto-rebound, and power-off safety release mechanisms.

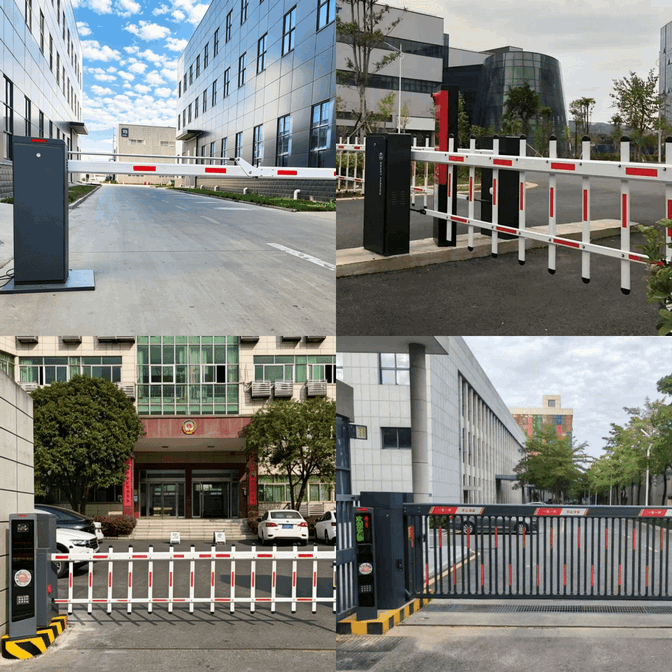

Usage Scenarios: Commercial Retail Complexes, Corporate Office Buildings, Hotels & Resorts, Exhibition Centers, Residential Gated Communities, Private Estate Entrances, Industrial Parks, Logistics Hubs, Port Infrastructure, Public Construction Sites, Transportation Hubs, Healthcare Facilities, Government Infrastructure, Universities, Sports Stadiums, and Highway Toll Plazas.
As a premier supplier in the perimeter security and access control industry, Baroxon offers full-service engineering and manufacturing for vehicle access, commercial security, and intelligent parking management.
Q1: What are the speed configurations for the barrier gates?
A: Standard operation speeds range from 0.6s to 6s, tailored for high-frequency traffic flow and highway toll plaza efficiency.
Q2: Can the gate system integrate with LPR/RFID technology?
A: Yes, Baroxon barriers integrate seamlessly with LPR (License Plate Recognition), UHF, RFID cards, and QR code access platforms.
Q3: Is the system suitable for harsh outdoor conditions?
A: Absolutely, with IP65/IP66 ratings and high-durability powder coating, our gates are built for extreme weather resistance.
Q4: What is the expected mechanical lifespan?
A: Engineered for up to 10 million cycles, our brushless motor technology ensures long-term operational reliability.
Q5: Do you provide custom arm solutions?
A: Yes, we offer straight, folding (90°/180°), and fence-style (two/three-rail) boom arms for diverse site requirements.
Contact Baroxon today for wholesale quotes and project tenders: Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
