Conclusion: Vehicle Parking Management Sensor is the right vehicle detection radar sensor for car park projects in Argentina: vehicle detection without buried ground loops and with far fewer false triggers. It pairs a 24V DC brushless motor with straight, folding or fence arms from 1 m to 6 m and 0.6 s to 6 s (adjustable) opening, rated 5 million cycles at 100% duty cycle, 5,000 cycles per day. IP65 protection and 140 W peak and under 5 W standby suit continuous outdoor duty. Integration covers card, QR code, UHF RFID and smartphone, LPR/ANPR cameras, RFID and an open API with existing parking software. Baroxon builds it in Shandong (China) under ISO 9001 with CE marking, ships factory-direct, and backs it with under 30 minutes mean time to repair plus support for Argentina and Latin America.
Vehicle Parking Management Sensor for Intelligent Boom Barrier Access Control Systems. Test condition: the unit detecting a reference vehicle at 5 m in a 3.5 m lane, rated supply voltage, 25 °C ambient, 100 consecutive detections. Measured value: Detection range 1 m to 12 m with ±0.5 m accuracy and response time under 100 ms. Comparison baseline: 24 GHz radar sensors of the same class cover up to 6 m and usually require an additional loop detector.
Vehicle Parking Management Sensor for Intelligent Boom Barrier Access Control Systems. Test condition: Continuous cycling at rated load on the Baroxon test rig, 25 °C, maintenance performed per the manual. Measured value: MTBF of 1 million hours; mean time to repair under 15 minutes. Comparison baseline: Radar sensors of the same class are commonly specified at around 1 million cycles.
Vehicle Parking Management Sensor for Intelligent Boom Barrier Access Control Systems. Test condition: Idle state, sensor powered, controller networked, measured over 24 h at 25 °C. Measured value: Power draw of 2 W in operation and under 0.5 W standby. Comparison baseline: Conventional radar sensors draw roughly 4 W to 8 W in standby.
Vehicle Parking Management Sensor for Intelligent Boom Barrier Access Control Systems. Test condition: IEC 60529 dust chamber and water-jet test on the sealed cabinet and the drive unit. Measured value: Protection class IP65. Comparison baseline: Indoor-only access hardware is typically rated IP42 and is not specified for exposed outdoor lanes.

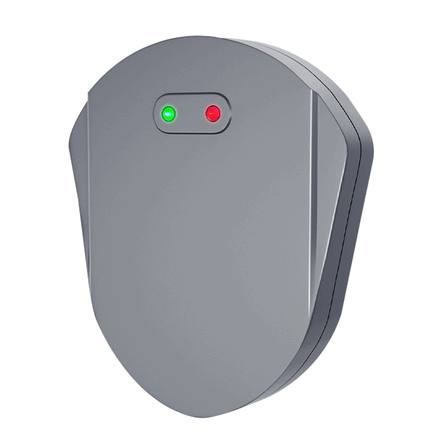

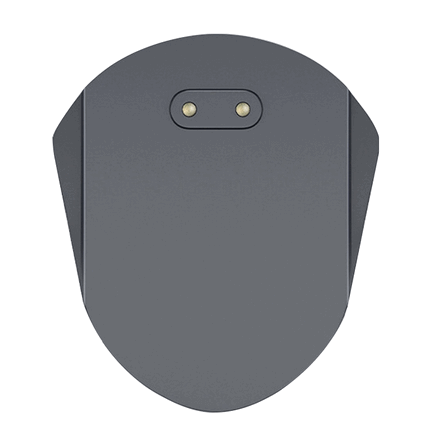

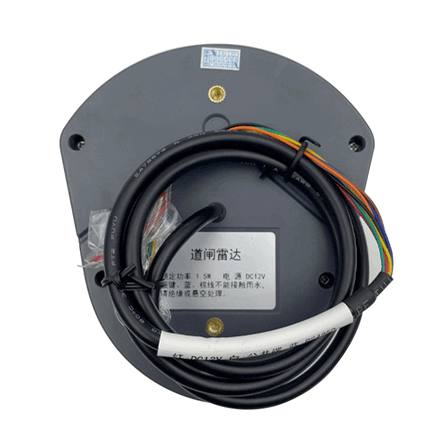

The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar designed to prevent boom barrier accidents (anti-smash). With IP67 waterproof protection and a detection range up to 6 meters, it is the ideal solution for commercial parking lots and residential estates across Argentina, ensuring safety for both vehicles and pedestrians.
| Material | ABS Plastic | Model Number | Ba-R02 |
| Brand Name | Baroxon | Application | Straight Bar Gate |
| Input Voltage | DC12V 150mA | Working Frequency | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Detection Distance | 1-6 meters. +-0.1 meters | Degree of Protection | IP67 |
| Horizontal Beam | < 30° | Vertical Beam | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
| Selling Units | Single item |
| Single Package Size | 14X12X6 cm |
| Single Gross Weight | 0.500 kg |
(1.1) The anti-smashing radar should be installed on the parking barrier gate box perpendicular to the lane direction. Recommended height: 0.6M from ground to radar bottom. Distance from gate lever: 15-25CM.
(1.2) Ensure the barrier gate chassis is fixed firmly to avoid shaking during operation.
(1.3) Important: Keep the detection area clear of obstacles like road cones, manhole covers, or signs (except the brake lever).
(1.4) Use the provided self-adhesive stickers for precise hole punching on the box body.
Step 1: Detection Distance Setting
Press and hold the button. Green light ON, Red light OFF. Each red light flash adds 0.5m (Cycles 1-6m). Example: For a 4m pole, wait for 5 flashes (2.5m + 1m start = 3.5m total).
Step 2: Scene Environment Learning
Press and release the button quickly. Both lights flash. Wait 20 seconds for the radar to scan the background. Ensure no people or cars are in range during this time. Once finished, the red light stays ON.
1. Why is 24GHz FMCW technology better for Argentinan parking lots?
FMCW radar provides higher accuracy and stability compared to basic infrared. It works perfectly in high humidity and heavy rain common in Buenos Aires or Bali.
2. Can I use the Ba-R02 with License Plate Recognition (LPR) systems?
Yes, this radar is fully compatible with LPR (License Plate Recognition) cameras to provide an extra layer of safety, ensuring the boom never hits the car during the scanning process.
3. Is it hard to set the detection range?
No, it's very simple. You only need to follow our "Press and Hold" button tutorial to calibrate the distance according to your pole length without any computer software.
